Developer guide
This section is dedicated to the design of Geti™. It is intended as a high-level overview of the platform architecture, as well as the design of every component of the system. Geti™ is part of Intel's Open Edge Platform, an open source ecosystem that provides scalable edge solutions.
Architecture style
Geti™ is a cloud-native distributed system architecture comprising interactive microservice and AI workflows. Most components of Geti™ adhere to the microservice architecture style, while some components, such as active learning, follow the service-based architecture style. Additionally, event-driven architecture is utilized for asynchronous communication between components.
Architecture characteristics
- Usability/Interactivity: Geti™ is designed to be highly intuitive, focusing on SME as the main persona. Its main interface is a highly interactive web application based on active learning AI training methodology, enabling users to build deep learning models without prior deep learning knowledge.
- Performance and efficiency : State-of-the-art models, carefully selected to excel on Intel hardware. All models can be trained using small datasets.
- Portability: Geti™ is designed as a portable, cloud and edge-native system. It can be deployed on scalable K8S cloud clusters like EKS to leverage elastic cloud hardware and managed services. Additionally, it can be deployed on edge clusters using lightweight K8S distributions like K3S.
- Scalability: Geti™ is a multi-tenant system based on soft multi-tenancy. This design allows it to serve small organizations with a few employees at the edge, as well as thousands of organizations in the cloud, sharing hardware resources for cost optimization.
- Security: Geti™ was designed and built with security as a foundational principle, incorporating robust features such as authentication, authorization, and mutual TLS to safeguard data and ensure a strong, defense-in-depth security posture.
High-level architecture

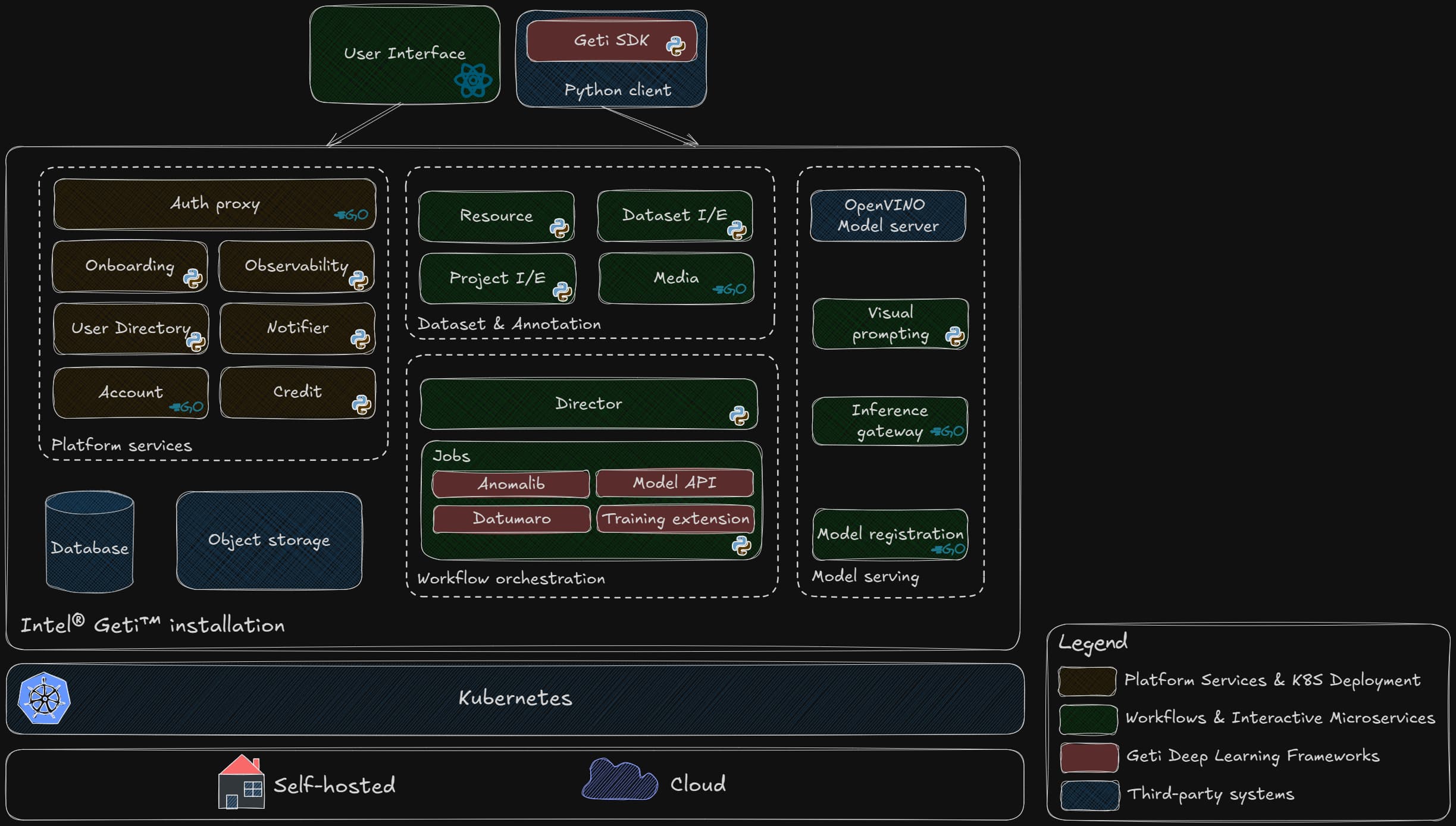

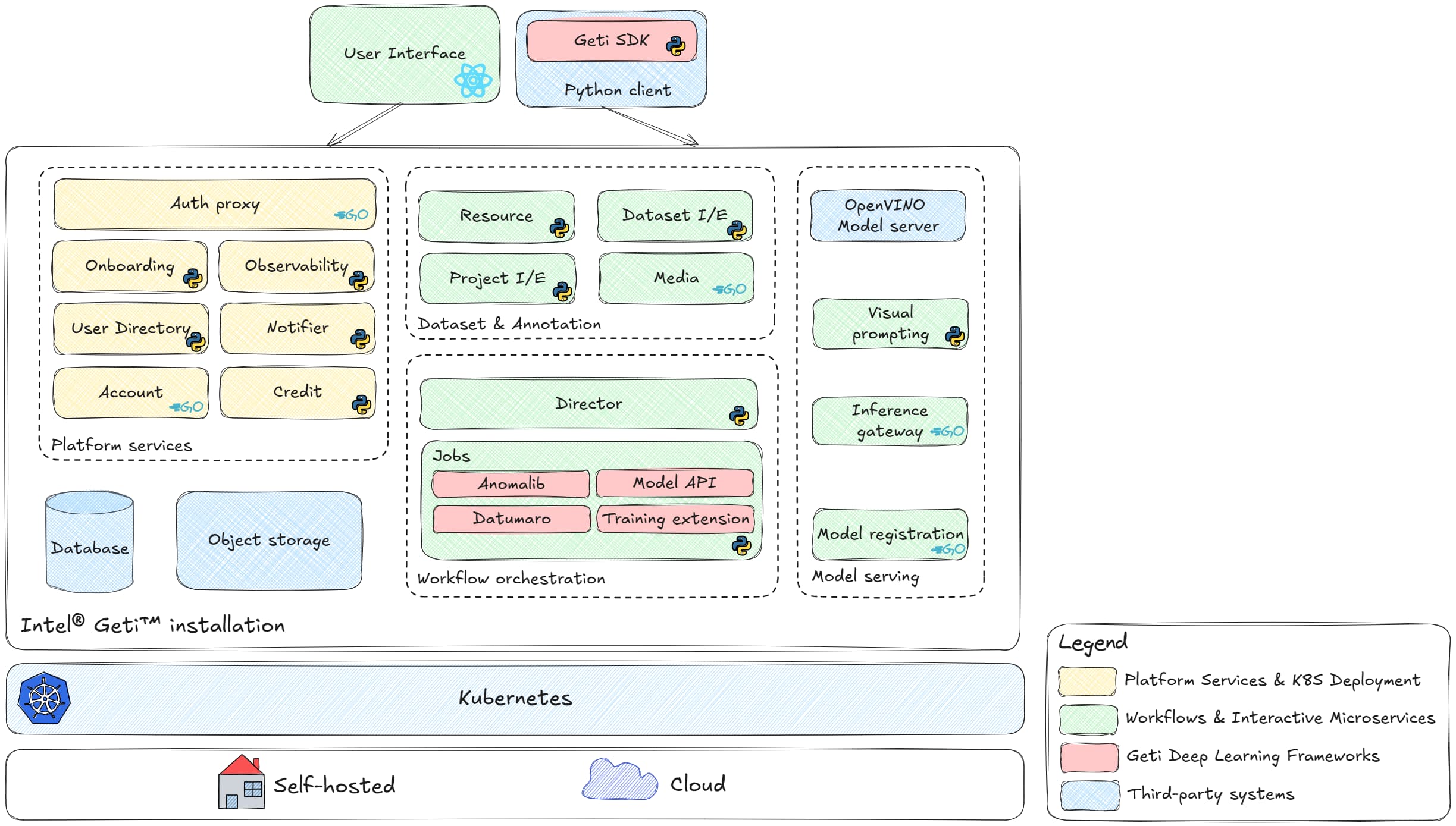

The following diagram visualizes the high-level design of the entire system.
The core subsystems of Geti™ are described in subsections below.
Platform Services
Subsystem provides basic services (identity and access management, logging and observability), serves as an abstraction layer over the infrastructure services.
| Service | Description |
|---|---|
| Auth proxy | Supports Istio Ingress authentication, implements additional validation and token exchange |
| User directory | Service to support internal directory based on OpenLDAP to manage user accounts credentials |
| Account | Service that implements organization, user account and API key management |
| Onboarding | Orchestrate users and organizations onboarding in cloud-based installation |
| Observability | Collects and provides logs |
| Notifier | A service to offload the responsibility of sending messages via different channels from such service as Onboarding and Account |
| Credit | Service tracks the running amount of Geti™ resources consumed by users in a cloud-based installation and constraints access to Geti™ services when users drain their allocated budget |
Workflows & Interactive Microservices
Subsystem enables seamless workflows from dataset management to model training, optimization, evaluation, and deployment.
| Service / Workflow | Description |
|---|---|
| Resource | Manage the lifecycle of resources (projects, datasets, annotations, models) |
| Dataset I/E | Dataset import and export. This service aims to support public dataset formats, to allow Geti™ user to seamlessly migrate their data in and out of Geti™ |
| Project I/E | Project import/export. This feature allows the users to move in-between Geti™ instances |
| Media | Serve image, video and thumbnails |
| Director | Orchestrate active & incremental learning cycles |
| Visual prompting | Service provides a faster working model for tasks like detection and segmentation when compared to the traditional fine-tuning approach |
| Inference gateway | Service handles all the predictions REST requests, on model predictions or task chain predictions |
| Model registration | Creates the model package and registers it for inference, it also unregister the model when it is not used |
Deep Learning Frameworks
Frameworks implement modern ML development stack to support computer vision datasets management, training, evaluation, optimization and deployment ML models, end-to-end inference API, Visual explanation for OpenVINO models and anomaly detection library.
| Framework | Description |
|---|---|
| Anomalib | An anomaly detection library comprising state-of-the-art algorithms and features such as experiment management, hyper-parameter optimization, and edge inference |
| Datumaro | A Python library and a CLI tool to build, analyze and manage Computer Vision datasets |
| Training Extensions | Framework that allows to train, evaluate, optimize and deploy Computer Vision Models via OpenVINO™ |
| Geti™ SDK | Software Development Kit for the Geti™ |
| OpenVINO™ Model API | A set of wrapper classes for particular tasks and model architectures, simplifying data preprocess and postprocess as well as routine procedures |
